When you think of your new home or building addition, you dream of comfort, beauty and security for your family. Our Window Factory Outlet Series patio door helps you and your builder achieve this vision. Rely on its strength, performance, durability and ease of handling. The Window Factory Outlet is truly a combination of traditional craftsmanship and advanced material.

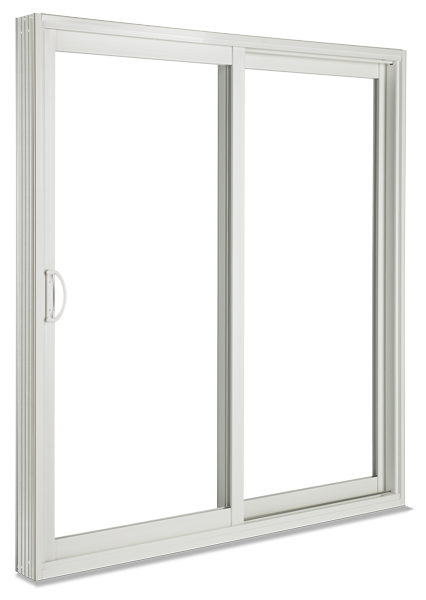

Two Panel
Sliding Patio Doors
PERFECT PATIO DOOR SYSTEM
FEATURES AND BENEFITS:
- All vinyl, multi-chamber profile design for superior insulating properties for your comfort and energy savings.
- Mechanically-joined frame with accessory groove in standard
5-5/8” frame depth. - Mechanically fastened aluminum reinforced door panels for rigidity and strength.
- Standard sizes available: 5’, 6’ or 8’ width by 6’8” height.
- AAMA certified zinc-plated, double tandem steel rollers for durability and smooth, effortless sliding.
- Corrosion-resistant, anodized-aluminum tracks for ongoing, smooth gliding operation.
- Full perimeter triple layer weather stripping for excellent air and water tightness.
- Standard “Landmark” handle (with lock and key upgrade) and available upgrade to “Prestige” series handles.
- Heavy-duty screen with heavy-gauge extruded aluminum frame and fiberglass mesh for solid frame and smooth operation.
- Specially formulated, color-matched sealing material for durability in performance and color retention.
- Specially-designed fabrication equipment combined with some of the most eficient manufacturing processes ensure that the fit, finish and functionality of a PERFECT© brand sliding Patio Door is of the highest quality.

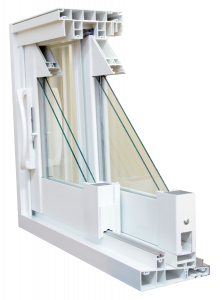

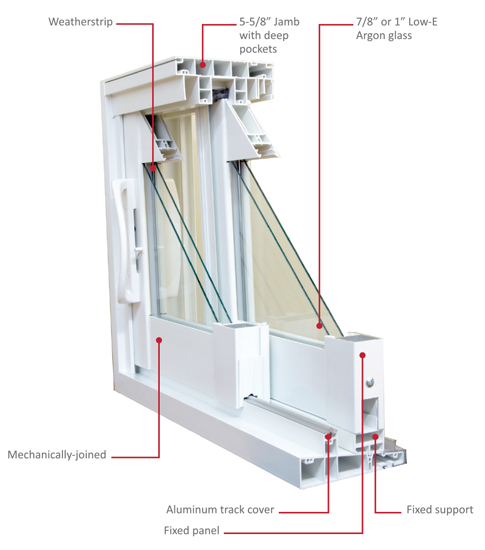

Cutaway view
CONFIGURATIONS
ACCESSORIES (upgrades)

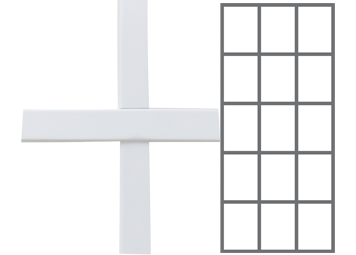

FLAT GRIDS
Flat Bar grids 5/8″ width. Grid style is a 3 x 5 pattern.
KICK LOCK
Mount on the bottom
of the operating door.
Used as a secondary lock.
KEY LOCK CYLINDERS
To match furnished handle.
NAIL FIN KIT
Available for all standard sizes.
Mini Blinds
Sliding Patio Doors
White Patio Doors With Mini Blinds

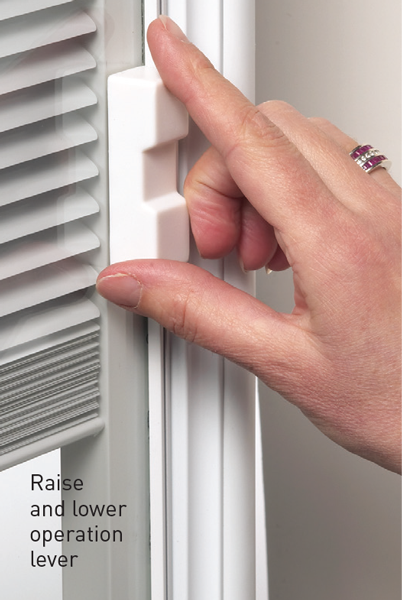

Maximum visibility to complete privacy at the tip of a finger. The lever raises, lowers or tilts the blinds sealed between the insulated glass to ensure a smooth maintenance-free operation. Includes Low-E glass – no Argon gas due to blinds.
- Fingertip operations.
- No external cords.
- No dusting.
- Low-E glass.
- Only available in white.
ACCESSORIES (upgrades)
KICK LOCK
Mount on the bottom
of the operating door.
Used as a secondary lock.
KEY LOCK CYLINDERS
To match furnished handle.
NAIL FIN KIT
Available for all standard sizes.
Special Orders
